SOUNDSATION YOUMIX-402 Κονσόλα ήχου

8-Channel Professional Mixing Console

4 Mic preamps with high-headroom & low-noise

2 Stereo channels and 1 separate stereo tape In/Out channel

BT Stereo audio wireless connection with in-line channel controls

USB Player with in-line channel controls

24-bit Digital Multi Effect with 256 Presets

Balanced 1/4" (6.3mm) jacks on all Mic/Stereo LIne channels

Stereo Balanced Output with XLR; Stereo Control Room Outputs with ?” Jack

3-band EQ on all mono channels; 2-band EQ on stereo channels

60mm Volume slider on each channel and Main Output

Aux/Eff Send controls on all channels

Aux/Eff Return with 60mm slider for optimal level adjustment

Control Room/Headphones output with dedicated volume control

Built-in +48V phantom power for condenser microphones

SPECIFICATIONS

Input Connections Balanced XLR (Mic Channels), Balanced 1/4” Jack (Mic and Stereo Line Channels), Stereo RCA (Tape In), USB 2.0 Type-A Jack (MP3 player)

Output Connection Balanced XLR (Main Out L-R), Unbalanced ?” Jack (Control Room L&R Out, Aux Send Out, Aux Return Input), Stereo ?” Jack (Phones), Stereo RCA (Tape Out)

CH1-4 Mic Pre Type Electronically balanced Preamps, discrete input configuration

CH1-4 Mic Pre Frequency Response 10Hz to 200kHz

CH1-4 Mic Pre Gain range +14dB to +60dB; SNR: 120dB E.I.N.

CH1-4 Line input Type Electronically balanced

CH1-4 Line input Frequency Response 10Hz to 130kHz

CH1-4 Line input Gain range -6dB to +38dB; SNR: 95dB E.I.N.

CH1-4 3-Band EQ Low Freq. 80Hz, +/-15dB; Mid Freq. 2.5kHz, +/- 15dB; Hi Freq. 12kHz, +/-15dB

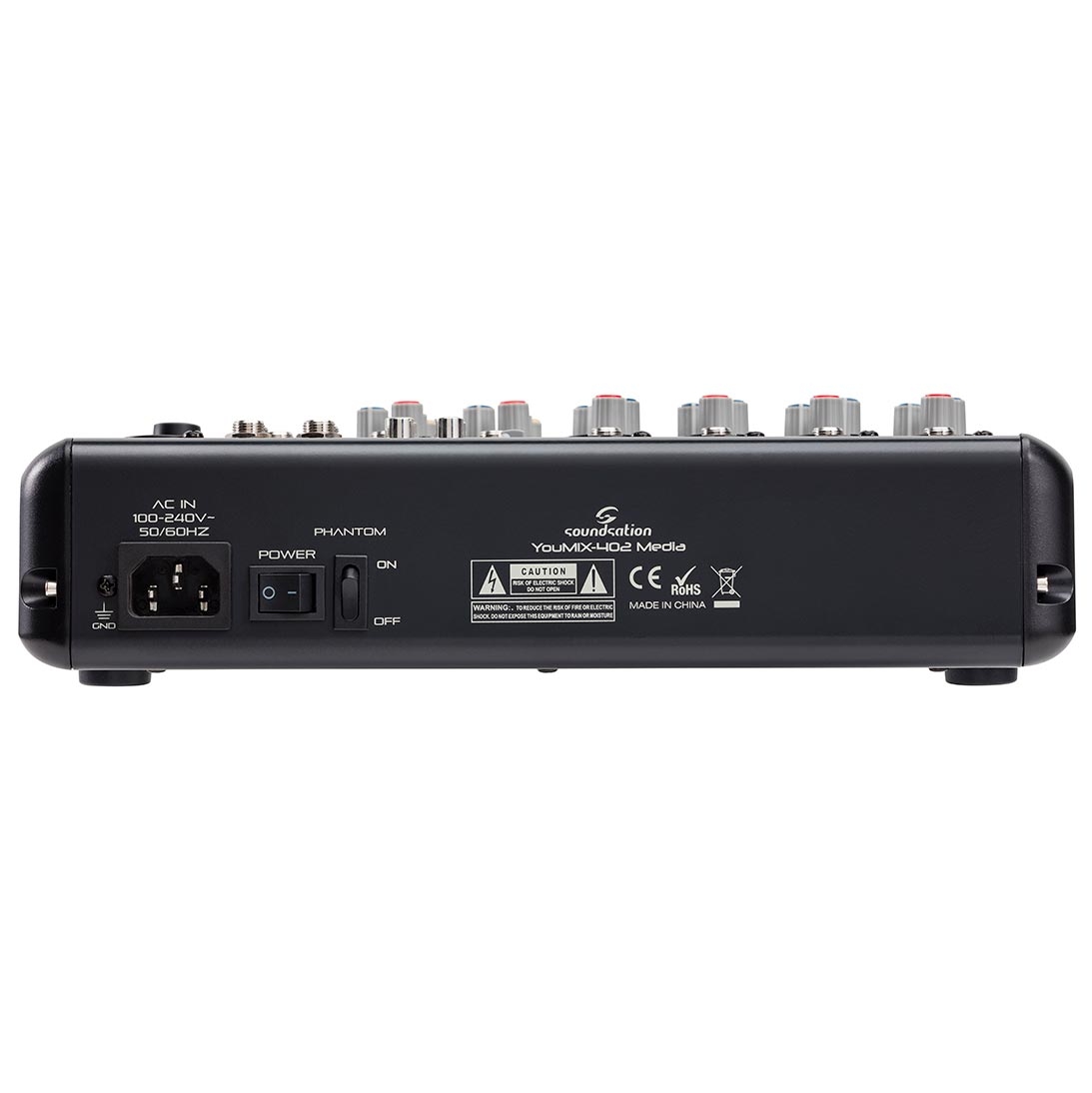

CH1-4 Other Controls Peak Led Indicator, Effect Send, Pan Position, Solo Button, 60mm Volume Slider, +48V Phantom Power (switch on rear panel)

CH5-8 Stereo Mic/Line Pre Type Electronically balanced

CH5-8 Frequency response 10Hz to 70kHz

CH5-8 Gain range Line: -8 to +15dB / Mic: +13 to +60dB

CH5-8 SNR Line: 96dB / Mic: 104dB E.I.N.

CH5-8 2-Band EQ Low Freq.; 80Hz, +/-15dB; Hi Freq.; 12kHz, +/-15dB

CH5-8 Other Controls Peak Led Indicator; Effect Send, Pan Position, Solo Button, 60mm Volume Slider, BT Pair button (CH5/6 only)

Main Outputs +28dB (balanced)

Control Room Outputs, Aux Send/Return, Tape Out +22dBu (unbalanced)

Phones Output +15dBu / 150ohm

Main Section Controls FX Return 60mm Level Slider, 60mm Main Level Slider, 60mm Phones/Control Room Volume Slider, Power On Led Indicator, Phantom On Led Indicator, 2x8 Led Vu Meter Bar (Main Level/Solo), 2x8 Character LCD Display (MP3 player and multieffect)

MP3 Player Controls USB Button, Parameter Dial/Push knob

Player Functions Music Player, EQ-Curve Selection, Player Mode, Audio Recording

USB Drive Format FAT32 format – max 32GByte

Player/Recorder File Formats MP3 (up to 48kHz @ 320kbps); WAV (32kHz/32bit)

Digital Multi Effect 24-bit Sigma-Delta, 256-times oversampling, 48kHz sampling rate, 256 Presets

Power Requirement 100-240Vac, 50/60Hz; Power Consumption: Max. 5W
