SOUNDSATION WF-U11HA UHF Σετ ασύρματο μικρόφωνο

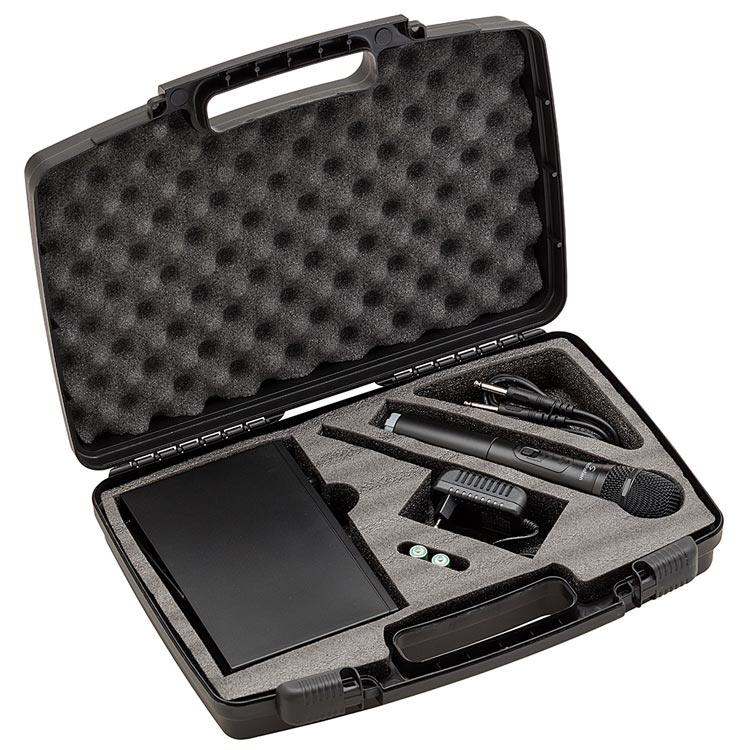

SOUNDSATION WF-U11HA UHF Plug & Play Hand-Held Wireless Microphone System (Freq. 863.05 MHz)



UHF Transmission with SMD Technology

4 available Frequencies in free-license ISM Europe Band

Simple user Interface for plug and play setup

30m ideal distance (without obstacles)

Handheld microphone with high-quality dynamic cardioid capsule







Carrier Frequency: UHF 863-865MHz

Available Frequencies: 863.05 MHz, 864.15 MHz, 863.55 MHz, 865.00 MHz (WF-U11HA Freq. is 863.05 MHz)

Frequency Stabilization: Automatic calibration

Dynamic Range: > 90dB

Total Harmonic Distortion: < 0.5%

Frequency Response: 40 ? 18500 Hz / ±3dB

Packing Dimensions (WxHxD): 436 x 104 x 324 mm

Packing Gross Weight: 2.0 kg

Power Supply: DC12V, 400mA

Consumption: < 4W

Signal/Noise Ratio: > 95dB

Border Upon Channel Rejection: > 80dB

Receiving Sensitivity: 10dBuV

De-Emphasis: 75uS

Audio Output Level: Balanced 400mV; Unbalanced 400mV

Dimensions (WxHxD): 211 x 43 x 115 mm (antennas not incl.)

Antenna: 120 mm (not bent)

Net Weight: 0.295 kg

Transmitter Power: 10mW

Modulation Type: FM

Deviation: 37KHz

Spurious Emission: > 30dB

Battery Voltage: 3V (2x1.5V AA-Type Batteries)

Continuous Using: 5 hours

Hand-held Mic. Dimensions (W/DxH): Ψ33 (min) - Ψ48 (max) x 240 mm

Hand-held Mic. Net Weight: 0.218 kg (batteries included)
