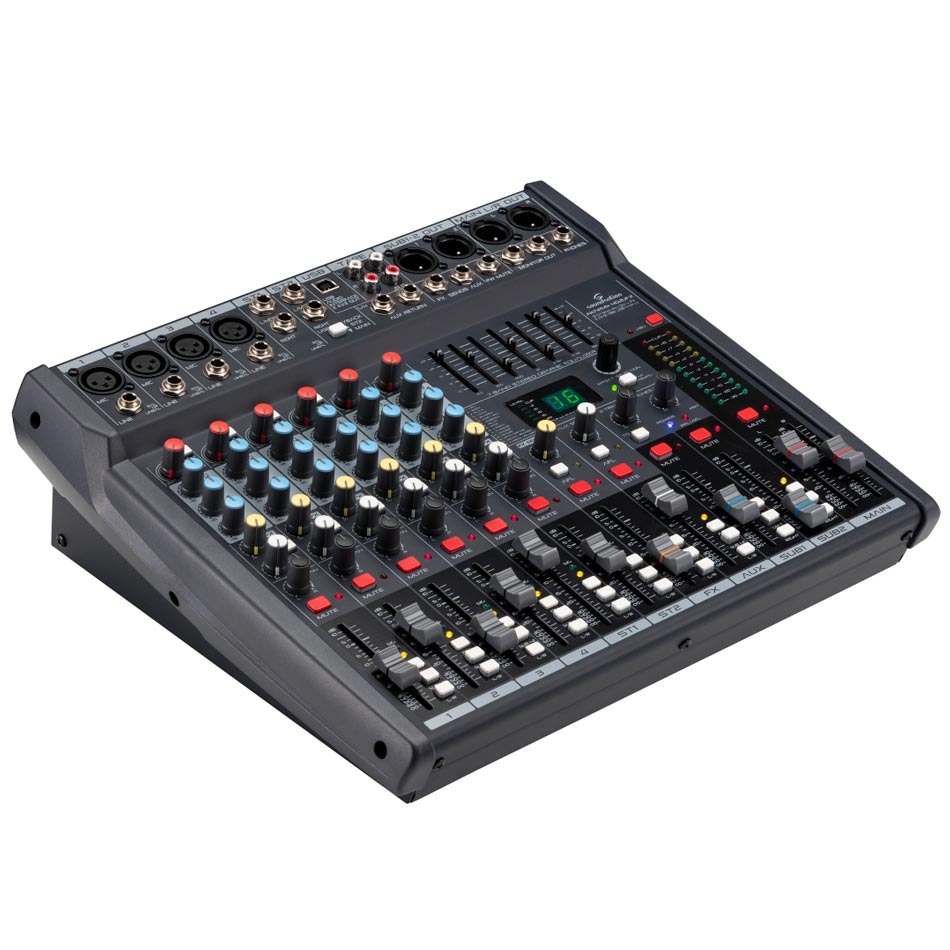

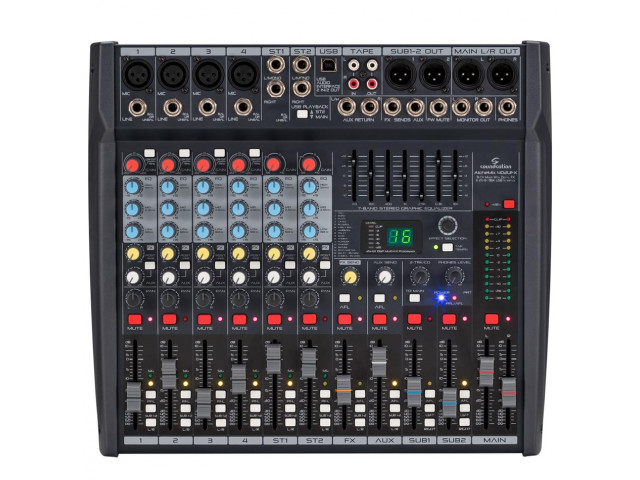

SOUNDSATION ALCHEMIX-402UFX Κονσόλα ήχου

8 Total Channels

4 Mic/Line channels with wide-range gain noiseless preamps, XLR and balanced ?” Jack connectors, 75Hz Low-Cut filter, +48V Phantom Power, Signal/Peak Indicator

2 Stereo Line Channels with balanced ?” Jack inputs, with gain and Peak Indicator

3-Band EQ, Pan/Balance, Mute, PFL, Group 1-2, Main L-R, 60mm Volume Fader

2 AUX sends (1 with Pre/Post selection for internal DFX or AUX1 Out; 1 Pre-Fader for AUX2 Out) with channel/master level, AFL, and ?” Jack outputs

Effect/AUX Return control with 60mm Fader, Mute, AFL, Group1-2, L-R assignment, and balanced ?” Jack inputs

Group 1-2 XLR outputs with 60mm Fader, Mute, AFL, Master Left and Right assignment

7-Band Graphic EQ on Master Bus with precision filters

24-bit/48kHz 16-Preset Digital Effect with Footswitch Out, TAP-Tempo Button and up to 2 Adjustable Parameters for each Preset

USB Stereo In/Out Sound Card with up to 96kHz/24-bit recording/playback capability

2-Track In/Out RCA connections and Level control

Headphones ?” Stereo Jack Out with Level control

XLR Main Outputs with 60mm Fader Control and MUTE

Stereo 12-Led VU Meter Bar for Main, PFL/AFL monitoring

Stereo ?” Jack Monitor Output

Rugged and Lightweight Metal Case

SPECIFICATIONS

Configuration

4 Mic/Line + 2 Stereo

Nominal Gain (Mic/Line/Stereo Line)   60dB, 40dB, 20dB

Max Gain (Mic/Line/Stereo Line)  80dB, 60dB, 40dB

Mic Input Sensitivity (Gain Min/Gain Max)  -10dBu/-60dBu

Line Input Sensitivity (Gain Min/Gain Max)  +10dBu/-40dBu

Stereo Line Input Sensitivity (Gain Min/Gain Max)  +10dBu/-20dBu

Aux Return Input Sensitivity  0dBu / 2-Track Input Sensitivity: -2dBu

Mic/Line Max Input Level  +24dB

Stereo Line/Aux/2-Track Max Input Level   +20dB

Mic Input Impedance  2kohm Balanced

Line/Aux Input Impedance  20kohm (Balanced)/10kohm (Unbalanced)

Tape Record Inputs Impedance  10kohm Balanced

Main/Group/Monitor/Aux Send Output Levels   0dBu (0.775V RMS) Nominal/ +22dBu (10V RMS) Max

Record Out Output Levels  -2dB (600mv RMS)/ +22dBu (10V RMS) Max

Main/Group/Monitor/Aux Send Output Impedance  75ohm

Record Output Impedance  1kohm

Phones Output Impedance  33ohm min

Frequency Response  20Hz to 20kHz (+0/-2dB)

Total Harmonic Distortion / Signal-Noise Ratio<0.006% / < -85dB

Mono MIC (Treble/Mid/Bass)  ±15dB (12kHz HF / 2.5 kHz MF/60Hz LF)

Stereo Line (Treble/Mid/Bass)  ±15dB (12kHz HF / 2.5 KHz MF/80Hz LF)

Effect  16 Effects, 24-bit Sigma-Delta, 256-times oversampling, 48kHz sampling rate

USB I/O Soundcard Up to 24-bit/96kHz Stereo Input/Output Streaming, USB Class-2.0 compliant

Phantom Power  +48V

Power Supply  150V-240V~50Hz, 15W max

Size (WxDxH)  322 x 316.5 x 134 mm

Carton Size (WxDxH)  405 x 165 x 392 mm

Net Weight  4.5 kg

Gross Weight  5.5 kg
