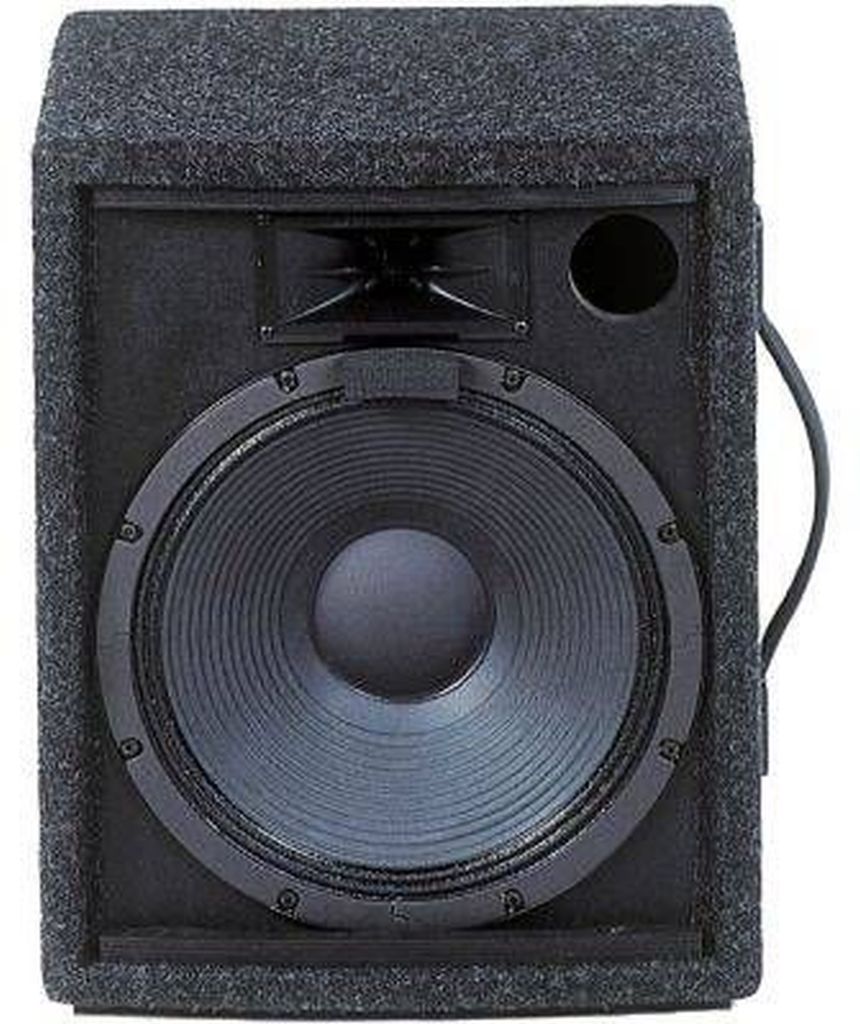

The A 122 is designed as an universal 12" 2-way system and can be used as a fullrange cabinet or with passive subwoofers (e.g. A 151 from the ACUS line). A DYNACORD speaker LFT 2008 12" works in the low/mid frequency range between 65 Hz and 5 kHz. The high frequency range over 5 kHz is radiated by a ferro-electric tweeter with polycarbonate diaphragm - type Dynacord HFT 1008. The A 122 is equipped with a passive crossover. The A 122 cabinet is made of high-density 16 mm chip-board. All corner joints and braces are grooved and glued. The cabinet surface is finished in extremely resistant needled black-mottled felt. A powder-coated steel grid protects the speaker front. The recessed connector panel of the A 122 features 2 Speakon connectors Input/Output (1+: Cabinet +/1-: Cabinet -) for safe connection and easy chaining to the next loudspeaker. The handle on the side guarantees easy and safe transport. 4 large-sized rubber feet and a speaker stand barrel at the bottom allow various setups.
Nominal impedance 8 Ohm
Rated power capacity RMS 100 Watts
Program power capacity 200 Watts
SPL 1W/1m 97 dB Max. SPL 1m 120 dB ( calculated )
Frequency range ( -10 dB ) 65 Hz - 18 kHz
Crossover frequency 5 kHz
Components Lo LFT 2008 # 353 930 , Hi HFT 1008 # 353 942
Connections 2 x Speakon connectors
Cabinet style 16 mm chip board, 1 handle, 4 rubber feet Outfit Needled felt surface black,
Powder-coated steel grid,
1 Speaker stand barrel
Dimensions ( WxHxD ) 372 x 459 x 322 mm
Weight 13,5 kg Β
